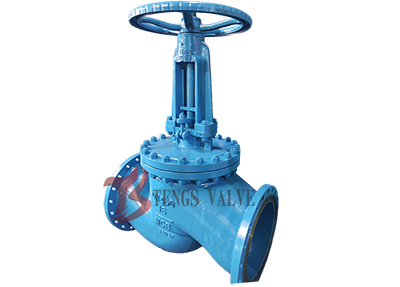

Carbon Steel A216 WCB PN16 Flanged Globe Valve - GS-C25, DN50 to DN450
Tengs Valve supplies high-quality Carbon Steel A216 WCB PN16 Flanged Globe Valves in GS-C25 straight type design. These globe stop valves feature rising stem, OS&Y, bolted bonnet construction with plug or parabolic disc. Available in sizes from DN50 to DN450 with pressure rating PN16 (1.6MPa). End connections include flanged raised face (RF) or flat face (FF). Operated by handwheel, bevel gear, or bare stem. Ideal for water treatment, chemical, power generation, and industrial pipeline applications.
Carbon Steel A216 WCB GS-C25 Globe Valve Specifications
• Design Standards: DIN 3352
• Face to Face: DIN 3202
• Inspection & Test: DIN 3230
• Flange Standard: EN 1092, DIN 2543, PN16
• Type of Valve: Globe, Stop Valve, Straight Type
• Valve Size: DN50 to DN450
• Nominal Pressure: PN16, 1.6MPa
• End Connections: Flanged, Raised Face (RF), Flat Face (FF)
• Disc Type: Plug Disc or Parabolic Disc
• Bonnet Type: Bolted Bonnet (B.B.)
• Stem Type: Rising Stem (RS)
• Body Material: Cast Steel A216-WCB, GS-C25
• Trim Material: 13Cr, Stellite, Stainless Steel
• Drive Type: Manual, Handwheel, Bevel Gear, Bare Stem
• Sour Condition: NACE MR 0175
• Special Design: Available
✓ WCB / GS-C25 carbon steel offers cost-effective solution for general industrial service at moderate temperatures up to 425°C
WCB vs GS-C25 vs LCB: Carbon Steel Grade Comparison
| Grade | Standard | Tensile Strength | Temperature Range | Typical Application |
|---|---|---|---|---|
| A216 WCB | ASTM A216 (US) | 485–655 MPa | -29°C to 425°C | General industrial service, oil, gas, water, steam |
| GS-C25 | DIN 17245 (EU) | ≥ 450 MPa | -10°C to 400°C | European standard equivalent of WCB, general industrial service |
| A352 LCB | ASTM A352 (US) | 450–620 MPa | -46°C to 345°C | Low-temperature service, LNG, cold climate, cryogenic pipelines |
Reference: ASTM A216 / A352, DIN 17245. WCB and GS-C25 are essentially equivalent carbon steel grades for general service. LCB is selected for low-temperature service below -29°C.
Main Materials for Carbon Steel A216 WCB GS-C25 Globe Valve
| Parts Name | Material | ||
|---|---|---|---|
| CS / Trim 1 | CS / Trim 8 | CS / Trim 5 | |
| Body | GS-C25 + 13Cr (WCB + 13Cr) | GS-C25 + STL (WCB + STL) | GS-C25 + STL (WCB + STL) |
| Disc | GS-C25 + 13Cr (WCB + 13Cr) | GS-C25 + 13Cr (WCB + 13Cr) | GS-C25 + STL (WCB + STL) |
| Stem | ASTM A182 F6a | ||
| Nut | A194 2H | ||
| Bolt | A193 B7 | ||
| Gasket | SS Spiral Wound with Graphite, or SS Spiral Wound with PTFE, or Reinforced PTFE | ||
| Bonnet | GS-C25 (A216-WCB) | GS-C25 (A216-WCB) | GS-C25 (A216-WCB) |
| Packing | Braided Graphite or Reformed Graphite Ring or PTFE | ||
| Gland | ASTM A182 F6a | ||
| Gland Flange | GS-C25 (A216-WCB) | ||
| Stem Nut | Copper Alloy or A439 D2 | ||
| Hand Wheel | Ductile Iron or Carbon Steel | ||
Reference: DIN 3352, DIN 3202, DIN 3230. Materials may vary by model and pressure rating. Contact us for confirmed material certificate.
Typical Applications of Carbon Steel A216 WCB Globe Valve
• Water treatment and distribution: municipal water supply, distribution networks, and wastewater treatment plants.
• HVAC and district heating: heating, ventilation, air conditioning, and district heating pipelines requiring flow regulation.
• Chemical and petrochemical: process lines with non-corrosive and mildly corrosive media requiring precise throttling.
• Power generation: boiler feedwater, auxiliary steam, and cooling water systems at PN16 pressure ratings.
• Oil & gas low-pressure service: crude oil, natural gas, and refined product lines at moderate temperature.
• General industrial pipelines: cost-effective solution for non-corrosive media with reliable flow regulation.
FAQ - Carbon Steel A216 WCB PN16 Globe Valve
Q1: What is a Carbon Steel A216 WCB globe valve?
A: A Carbon Steel A216 WCB globe valve is a linear motion valve designed for throttling and flow regulation in pipelines. The body and bonnet are made of ASTM A216 WCB cast carbon steel (equivalent to DIN GS-C25). It is manufactured to DIN 3352 with face-to-face dimensions per DIN 3202 and is rated for PN16 (1.6 MPa) pressure.
Q2: What is the difference between A216 WCB and GS-C25?
A: A216 WCB (ASTM A216, US standard) and GS-C25 (DIN 17245, European standard) are essentially equivalent carbon steel grades for general industrial service. WCB is commonly specified in American projects, while GS-C25 is preferred in European projects. Both provide similar mechanical properties and temperature ranges up to 400-425°C.
Q3: What is the difference between WCB and LCB?
A: WCB is standard carbon steel suitable for service from -29°C to 425°C. LCB (ASTM A352) is a low-temperature carbon steel grade with guaranteed impact toughness down to -46°C. LCB is preferred for LNG, cold climate pipelines, and cryogenic applications where WCB would become brittle.
Q4: What is the difference between a globe valve and a gate valve?
A: A globe valve uses a plug that moves along the flow axis, providing better throttling and flow regulation — ideal for modulating service. A gate valve uses a wedge that moves perpendicular to the flow, providing full bore flow with minimal pressure drop — ideal for on-off isolation only. Globe valves should be used for throttling, while gate valves should only be used fully open or fully closed.
Q5: What are the available trim options?
A: Common trim options include Trim 1 (13Cr / 410 SS) for standard non-corrosive service; Trim 5 (Stellite hard-faced) for high-temperature steam and erosion; and Trim 8 (13Cr + Stellite) for general sour service. Trim selection depends on media, temperature, and erosion/corrosion conditions.
Q6: What end connections and actuation options are available?
A: End connections include flanged (RF, FF) per DIN 2543 and butt weld (BW). Actuation options include manual handwheel, bevel gear, and bare stem for electric actuator. Other options are available on request.
Get a Fast Quote for Carbon Steel A216 WCB Globe Valve
Send us your size (DN50 – DN450), pressure rating, material grade (WCB / GS-C25 / LCB), trim option, end connection, actuation type, and quantity. Our team will reply within 24 hours with price, drawing, and delivery time.
Email: sales@tengsvalve.com
Website: Request a Quote Online
Email Us Now
Industrial Globe Valve Dimension Details
