Trunnion Ball Valve Reduced Bore 600LBS - API6D
Tengs Valve supplies Trunnion Mounted Ball Valves (Fixed Ball Valves) in reduced bore design for ANSI Class 600LBS, manufactured to API6D standard. Available in sizes 3″ to 36″ (DN80 to DN900), with body materials including WCB, A105, LF2, LCB, CF8, CF8M, CF3, CF3M. Features include reduced bore design, flanged end connections, and lever or worm gear operation. Reduced bore offers a cost-effective and lighter-weight alternative to full bore, ideal for high-pressure oil & gas, chemical, and power generation applications where slightly reduced flow capacity is acceptable.
Specifications for Trunnion Ball Valve Reduced Bore 600LBS
• Design: API 6D, ANSI B16.34
• Face to Face: API 6D, ASME B16.10
• Flange End: ANSI B16.5
• Size Range: 3″ to 36″ (DN80 to DN900)
• Pressure Ratings: ANSI Class 600LBS
• Body Materials: WCB, A105, LF2, LCB, CF8, CF8M, CF3, CF3M etc.
• Trim Materials: 13Cr, 304SS, 316SS, Duplex Stainless Steel
• Port Type: Reduced Bore (RB)
• Actuator Type: Lever, Worm Gear

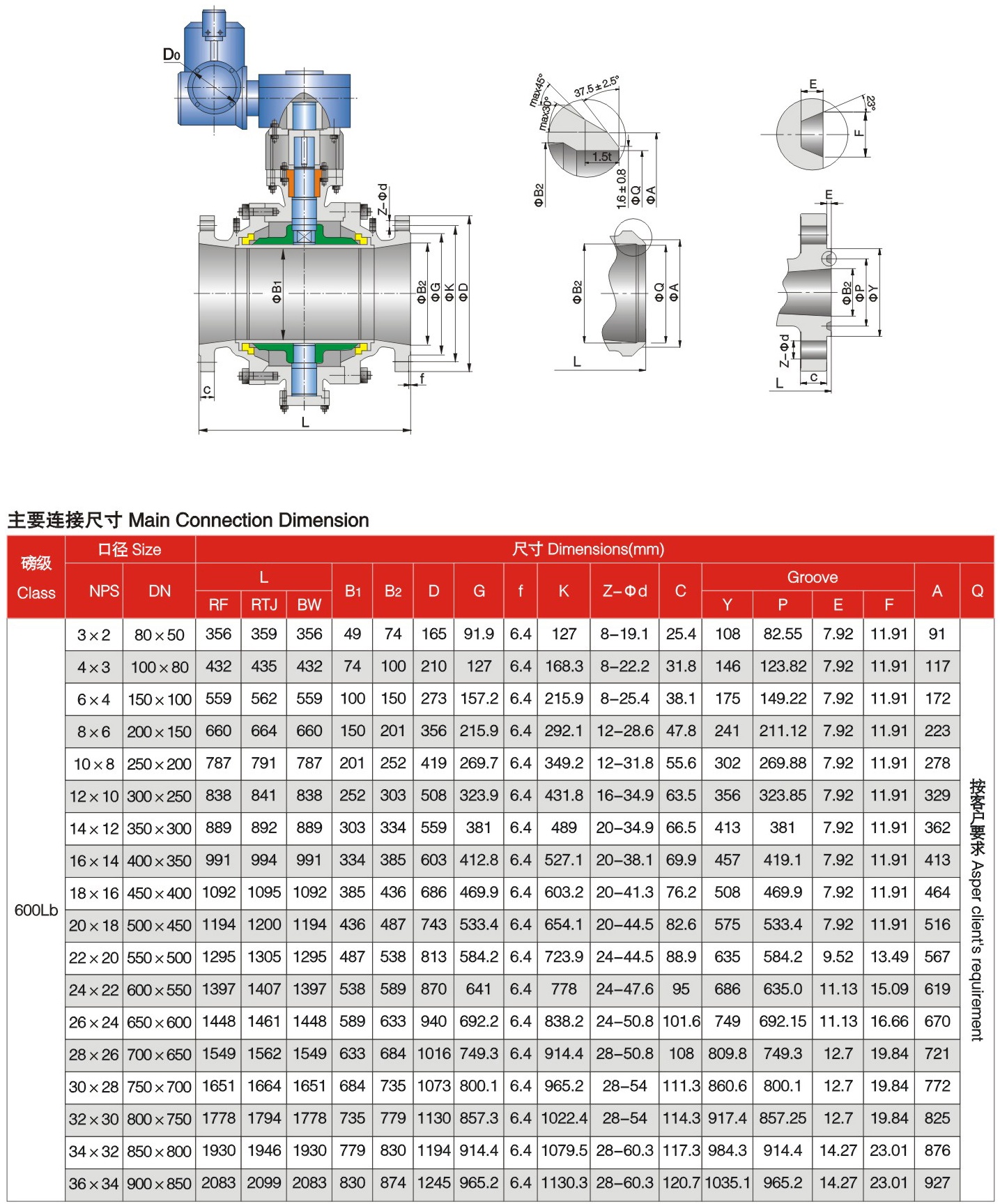

Trunnion Ball Valve Reduced Bore Dimensions for Class 600LBS
Reference: API6D. Dimensions may vary by manufacturer. Contact us for confirmed drawing and quotation.
