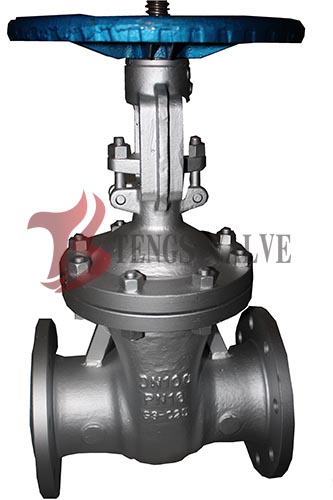

DIN PN16 Cast Steel Gate Valve - Metal Seated Wedge Gate Valve
We supply DIN PN16 Cast Steel Gate Valve with metal seated hardfaced wedge design for reliable shut-off in European standard pipeline systems. Manufactured in accordance with DIN 3352, this cast steel gate valve features OS&Y rising stem, bolted bonnet construction, flanged (RF) end connections, and metal-to-metal seal for extended service life. Available in sizes DN50 to DN600 with pressure rating PN16 (16Bar / 1.6MPa). Materials include carbon steel, stainless steel, and alloy steel to suit various service conditions. Ideal for water treatment, chemical, petrochemical, and industrial pipeline applications requiring DIN standard compliance.
PN16 Metal Seat Wedge Gate Valve Specification
• Valve Type: DIN PN16 Gate Valves
• Bonnet Type: OS&Y, Bolted Bonnet
• Wedge Type: Solid or Flexible Wedge
• Stem Type: Rising Stem (RS)
• Seat Type: Metal Seat, Hard Seal
• Size Range: DN50 to DN600 (2″ to 24″)
• Pressure Rating: PN16 (16Bar / 1.6MPa)
• Body Materials: Cast Steel: GS-C25, 1.4308, 1.4408, WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent
• Trim Materials: Various trim materials are available to suit different service conditions
• Actuator Type: Manual Handwheel
✓ Metal-to-metal seal — suitable for high-temperature and abrasive service where soft-seated valves are not adequate
DIN Gate Valve Standards
| Design Standard | Face to Face | Flange Ends | Test & Inspection |
|---|---|---|---|
| DIN 3352 | DIN 3202-F5 | DIN 2543-2545 | DIN 3230 |
Reference: DIN 3352, DIN 3202-F5, DIN 2543-2545, DIN 3230. Other standards available on request.
DIN Standard Cast Steel Gate Valve Parts and Material List for DIN PN16
| No. | Part Name | Material | ||||
|---|---|---|---|---|---|---|
| CS / Trim 1 | CS / Trim 8 | CS / Trim 5 | SS (1.4308) | SS (1.4408) | ||
| 1 | Body | DIN 17245 GS-C25+13Cr | DIN 17245 GS-C25+STL | DIN 17245 GS-C25+STL | DIN 17445 1.4308 | DIN 17445 1.4408 |
| 2 | Wedge | DIN 17245 GS-C25+13Cr | DIN 17245 GS-C25+13Cr | DIN 17245 GS-C25+STL | DIN 17445 1.4308 | DIN 17445 1.4408 |
| 3 | Stem | ASTM A182 F6a | ASTM A182 F304 | ASTM A182 F316 | ||
| 4 | Nut | A194 2H | A194 8 | A194 8 | ||
| 5 | Bolt | A193 B7 | A193 B8 | A193 B8 | ||
| 6 | Gasket | SS Spiral Wound with Graphite, or SS Spiral Wound with PTFE, or Reinforced PTFE | ||||
| 7 | Bonnet | DIN 17245 GS-C25+13Cr | DIN 17245 GS-C25+13Cr | DIN 17245 GS-C25+13Cr | DIN 17445 1.4308 | DIN 17445 1.4408 |
| 8 | Packing | Braided Graphite or Reformed Graphite Ring or PTFE | ||||
| 9 | Gland | ASTM A182 F6a | ASTM A182 F304 | ASTM A182 F316 | ||
| 10 | Gland Flange | DIN 17245 GS-C25 | DIN 17445 1.4308 | DIN 17445 1.4408 | ||
| 11 | Stem Nut | Copper Alloy or A439 D2 | ||||
| 12 | Hand Wheel | Ductile Iron or Carbon Steel | ||||
Reference: DIN 3352, DIN 3202-F5, DIN 3230. Materials may vary by model and pressure rating. Contact us for confirmed material certificate.
Main Dimensions for DIN Gate Valve PN16
PN16 Metal Seated Gate Valve Dimensions (DIN3202-F5)
| PN1.6MPa DIN3202-F5 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L-RF | 250 | 270 | 280 | 300 | 325 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 800 |
| W | 200 | 280 | 280 | 300 | 350 | 350 | 400 | 450 | 500 | 600 | 600 | 650 | 700 | 800 |
Reference: DIN 3202-F5, DIN 2543-2545. Dimensions may vary by manufacturer. Contact us for confirmed drawing and quotation.
Typical Applications of DIN PN16 Metal Seated Gate Valve
• Water treatment and distribution: municipal water supply, distribution networks, and water treatment plants.
• Chemical and petrochemical: process lines with corrosive media requiring metal-to-metal sealing.
• Power generation: cooling water, service water, and auxiliary systems in European-standard power plants.
• HVAC and district heating: large diameter pipelines for heating, ventilation, and air conditioning.
• High-temperature service: metal-seated design suitable for applications exceeding 200°C where soft-seated valves are not adequate.
• European and international projects: pipelines requiring DIN 3352 / DIN 3202-F5 / DIN 2543-2545 compliance.
FAQ - DIN PN16 Metal Seated Gate Valve
Q1: What is a metal seated gate valve?
A: A metal seated gate valve uses metal-to-metal contact between the wedge and seat rings for sealing. Unlike soft-seated (resilient) valves that use rubber or PTFE seats, metal-seated valves use hardfaced surfaces such as 13Cr or Stellite. This design makes them suitable for high-temperature and abrasive service where soft materials would degrade.
Q2: What is the difference between metal seated and soft seated gate valves?
A: Metal-seated gate valves use metal-to-metal contact for sealing, suitable for high-temperature service (above 200°C) and abrasive media, and resistant to wear and fire. Soft-seated gate valves use rubber or PTFE seats, providing bubble-tight sealing at lower temperatures but limited by the temperature rating of the soft material. Metal-seated valves generally require higher operating torque but offer longer service life in demanding conditions.
Q3: What materials are available for DIN PN16 gate valves?
A: Common body materials include GS-C25, 1.4308, 1.4408, WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, and C12. Various trim materials such as 13Cr, Stellite, and hard faced are available to suit different service conditions.
Q4: What is the difference between DIN PN16 and ANSI Class 150?
A: DIN PN16 and ANSI Class 150 are both low-pressure ratings, but they differ in standards. DIN uses European standards (DIN 3352 / DIN 3202-F5 / DIN 2543-2545) with metric DN sizes, while ANSI uses American standards with inch NPS sizes. Flange dimensions, face-to-face lengths, and materials (GS-C25 vs WCB) are different. Choose DIN for European projects and ANSI for American projects.
Q5: What end connections and actuation options are available?
A: End connections include flanged (RF) per DIN 2543-2545. Actuation options include manual handwheel, gear operated, and bare stem for electric actuator. Other options are available on request.
Q6: Why should a gate valve not be used for throttling?
A: Gate valves are designed exclusively for fully open or fully closed (isolation) service. Throttling can cause severe damage to the wedge and seating surfaces due to vibration, erosion, and wire drawing. Use a globe valve or dedicated throttling valve for flow regulation applications.
Get a Fast Quote for DIN PN16 Metal Seated Gate Valve
Send us your size (DN50 – DN600), pressure rating, material, end connection, actuation type, and quantity. Our team will reply within 24 hours with price, drawing, and delivery time.
