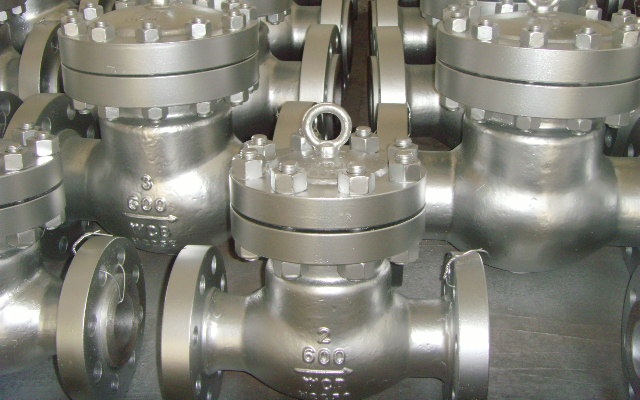

Cast Steel Swing Check Valve 600LBS - API 6D, BS 1868, 2" to 24"
Tengs Valve supplies high-quality Cast Steel Swing Check Valves (Non-Return Valves) for ANSI Class 600LB, manufactured to API 6D, ANSI B16.34, and BS 1868 standards. These swing check valves feature bolted bonnet, swing type disc design with double flanged or butt weld (BW) ends. Available in sizes 2″ to 24″ (DN50 to DN600). Materials include carbon steel (WCB, LCB, LCC), stainless steel (CF8, CF8M, CF3, CF3M), alloy steel (WC6, WC9, C5, C12), and duplex stainless steel (4A, 5A). Trim options include 13Cr, half Stellite, and full Stellite. Ideal for oil & gas, chemical, power generation, and water treatment pipeline systems.
ANSI 600LB Cast Steel Swing Check Valve Specification
• Design & Manufacture: API 6D, ANSI B16.34, BS 1868
• Construction: Bolted Bonnet, Swing Type Disc
• Size Range: 2″ to 24″ (DN50 to DN600)
• Pressure Ratings: ANSI 600LB / Class 600 / PN100
• End Connections: Flanged (RF), Butt Weld (BW)
• Body Materials: WCB, LCB, LCC, CF8, CF8M, CF3, CF3M, 4A, 5A, WC6, WC9, C5, C12 or Equivalent
• Trim Materials: 13Cr Trim, Half Stellite, Full Stellite, and other materials to suit service conditions
• Sour Service: NACE MR 0175 on Request
Swing Check Valve 600LBS Main Parts and Materials
| Part Name | Material | ||
|---|---|---|---|
| Carbon Steel (WCB) | Stainless Steel (CF8 / CF8M) | Alloy Steel (WC6 / WC9) | |
| Body | A216 WCB | A351 CF8 / CF8M | A217 WC6 / WC9 |
| Bonnet / Cover | A216 WCB | A351 CF8 / CF8M | A217 WC6 / WC9 |
| Disc | WCB + 13Cr / STL | CF8 / CF8M | WC6 / WC9 + 13Cr / STL |
| Seat | 13Cr / STL | SS304 / SS316 | 13Cr / STL |
| Hinge Pin | A182 F6a | A182 F304 / F316 | A182 F6a / F11 |
| Bolts/Nuts | A193 B7 / A194 2H | A193 B8 / A194 8, B8M / 8M | A193 B7 / A194 2H |
| Gasket | Graphite / PTFE | Graphite / PTFE | Graphite / PTFE |
Reference: API 6D, BS 1868. Materials may vary by model and pressure rating. Contact us for confirmed material certificate.
Reference: API 6D, BS 1868. Dimensions may vary by manufacturer. Contact us for confirmed drawing and quotation.

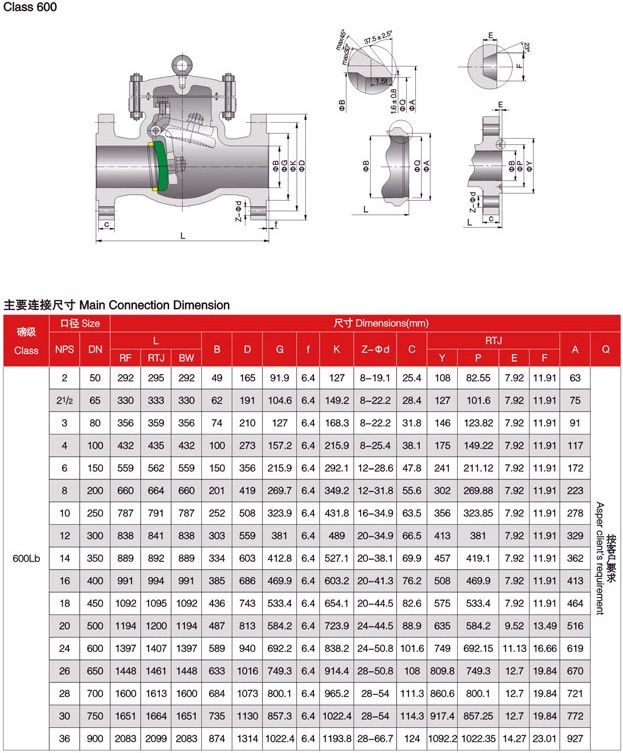

Industrial Check Valve Dimension Details
Typical Applications of 600LBS Swing Check Valve
• Oil & gas transmission pipelines: crude oil, natural gas, and refined product lines at medium-high pressure.
• Refinery and petrochemical plants: process lines requiring reliable non-return protection.
• Power generation: steam, feedwater, and cooling water systems.
• Chemical processing: corrosive media handling with CF8 / CF8M trim options.
• Water treatment and pump discharge: preventing backflow and protecting pumps.
• Sour service: available with NACE MR 0175 compliance on request.
FAQ - Cast Steel Swing Check Valve 600LBS
Q1: What is a 600LBS swing check valve?
A: A 600LBS swing check valve is a non-return valve designed for ANSI Class 600 pressure rating. It uses a swing type disc that opens with forward flow and closes automatically to prevent backflow. It is manufactured to API 6D, ANSI B16.34, and BS 1868 standards.
Q2: What is the pressure rating of ANSI Class 600?
A: ANSI Class 600 is a medium-high pressure rating, approximately equivalent to PN100. It is suitable for oil, gas, refinery, petrochemical, power generation, and general industrial pipeline systems.
Q3: What materials are available for 600LBS swing check valves?
A: Common body materials include WCB, LCB, LCC, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, 4A, and 5A. Trim materials such as 13Cr, half Stellite, and full Stellite are available to suit different service conditions.
Q4: What end connections are available?
A: 600LBS swing check valves are available with flanged ends (RF) and butt weld (BW) ends. Both are suitable for Class 600 pressure rating in oil & gas and industrial pipelines.
Q5: Is the 600LBS swing check valve suitable for sour service?
A: Yes. NACE MR 0175 compliance is available on request for sour service applications. Please specify this requirement when requesting a quotation.
Q6: What is the difference between a swing check valve and a lift check valve?
A: A swing check valve uses a hinged disc that swings on a hinge pin, suitable for larger sizes and horizontal pipelines. A lift check valve uses a piston / lifting disc that moves along the flow axis, suitable for smaller sizes and vertical pipelines with faster closing response.
Get a Fast Quote for 600LBS Swing Check Valve
Send us your size, pressure rating, material, end connection, and quantity. Our team will reply within 24 hours with price, drawing, and delivery time.
