Y Type Strainer 1500LBS - ANSI Class 1500, RJ RF BW Ends, 2 inch to 24 inch
Tengs Valve supplies high-quality Y Type Strainers for ANSI Class 1500LBS, manufactured with bolted cover design and available with flanged (RF), RJ or Butt Weld (BW) ends. Sizes range from 2″ to 24″ (DN50 to DN600). Body materials include cast carbon steel (WCB, LCB, LCC), stainless steel (CF8, CF8M, CF3, CF3M), and duplex stainless steel (A995-4A, 5A). Screen materials are SS304, SS316 and DSS with mesh sizes from 10 to 400 mesh. Ideal for ultra high-pressure water, gas, oil, and steam service in wellhead, gas injection, subsea and ultra high-pressure process piping systems.
Specifications For Y Type Strainer 1500LBS
• Sizes: 2″ to 24″ (DN50 to DN600)
• Pressure Rating: ANSI 1500LBS / Class 1500
• Suitable Medium: Water, gas, oil, steam, etc.
• Body Materials: WCB, LCB, LCC, CF8, CF8M, CF3, CF3M, A995-4A, 5A, etc.
• Screen Materials: Stainless Steel (304SS, 316SS, DSS)
• Mesh Sizes: 10, 20, 40, 60, 100, 200, 400 mesh, etc.
• End Connections: Butt Weld (BW), Flanged (RF), Ring Joint (RJ)
• Cover Type: Bolted Cover (B.C.)
• Design Standard: API 598, ASME B16.34, ASME B16.5, ASME B16.20
• Temperature Range: -29°C to 425°C (-20°F to 800°F)
✓ Class 1500 Y strainer provides ultra high-pressure filtration for wellhead, gas injection, subsea and ultra high-pressure process service
Y Type Strainer Pressure Class Comparison: Class 900 vs 1500 vs 2500
| Pressure Class | Design Pressure (bar) | Design Pressure (psi) | Typical Application |
|---|---|---|---|
| Class 900 | 153 | 2,220 | Wellhead, gas injection, hydroprocessing |
| Class 1500 | 260 | 3,750 | Ultra high-pressure wellhead, subsea, gas injection, ultra high-pressure process |
| Class 2500 | 425 | 6,170 | Subsea wellhead, ultra high-pressure gas injection, extreme service |
Reference: ASME B16.34. Class 1500 is the standard choice for ultra high-pressure wellhead and subsea service. Class 900 is more economical for onshore high-pressure process; Class 2500 is selected for the most extreme subsea and gas injection requirements.
Class 1500 Y Type Strainer Common Material Selection
| Body Material | Standard | Key Characteristic | Typical Application |
|---|---|---|---|
| A216-WCB | ASTM A216 | High-strength carbon steel for Class 1500 | Ultra high-pressure steam, oil and gas, onshore wellhead |
| A352-LCB / LCC | ASTM A352 | Low-temperature carbon steel | Cold climate and low-temperature service down to -46°C |
| A351-CF8M (SS316) | ASTM A351 | Mo-bearing, ultra high-pressure corrosion resistance | Sour gas, ultra high-pressure chemical and hydroprocessing service |
| A351-CF3M | ASTM A351 | Low-carbon, weld-friendly | Welded ultra high-pressure construction, corrosive service |
| A995 4A / 5A | ASTM A995 | Duplex and super duplex stainless, high-chloride and sour resistance | Subsea wellhead, seawater injection, ultra high-pressure sour service |
Reference: For Class 1500 ultra high-pressure service, WCB is standard for non-corrosive ultra high-pressure steam, oil and gas. CF8M and A995 duplex 4A/5A (including super duplex 5A) are selected for sour and corrosive ultra high-pressure media. DSS 2205 and 2507 screens are available for wellhead and subsea service.
Y Type Strainer 1500LBS Mesh Selection Reference
| Mesh Size | Aperture (mm) | Application Medium |
|---|---|---|
| 60 mesh | 0.25 | Ultra high-pressure steam and wellhead gas service |
| 100 mesh | 0.15 | Subsea wellhead, gas injection and ultra high-pressure process filtration |
| 150 mesh | 0.10 | Precision filtration, ultra high-pressure instrument protection |
| 200 mesh | 0.074 | Fine filtration, ultra high-pressure injection and chemical service |
| 250 mesh | 0.061 | Very fine filtration, ultra high-pressure precision service |
Reference: Class 1500 ultra high-pressure Y strainers are typically supplied with 60–150 mesh SS or DSS screens. Finer mesh 200–250 mesh is available for precision subsea and injection service; coarser mesh 10–40 mesh is available for large debris removal on request.
Y Type Strainer 1500LBS Main Parts and Material List
| No. | Part Name | Material |
|---|---|---|
| 01 | Body | A216-WCB, A352-LCB/LCC, A351-CF8, A351-CF3, A351-CF8M, A351-CF3M, A995 4A/5A |
| 02 | Screen | 304SS, 316SS, DSS (2205 / 2507) |
| 03 | Gasket | Graphite + Stainless Steel (304SS, 316SS); RJ ring joint gasket optional |
| 04 | Cover | A105 / WCB, A182-F304, A182-F304L, A182-F316, A182-F316L |
| 05 | Bolt | A193 B7, A193 B8, A193 B8M |
| 06 | Nut | A194 2H, A194 8, A194 8M |
| 07 | Drain Plug | A193 B7, A193 B8, A193 B8M |
Reference: API 598, ASME B16.34, ASME B16.20. Materials may vary by model and pressure rating. Contact us for confirmed material certificate.

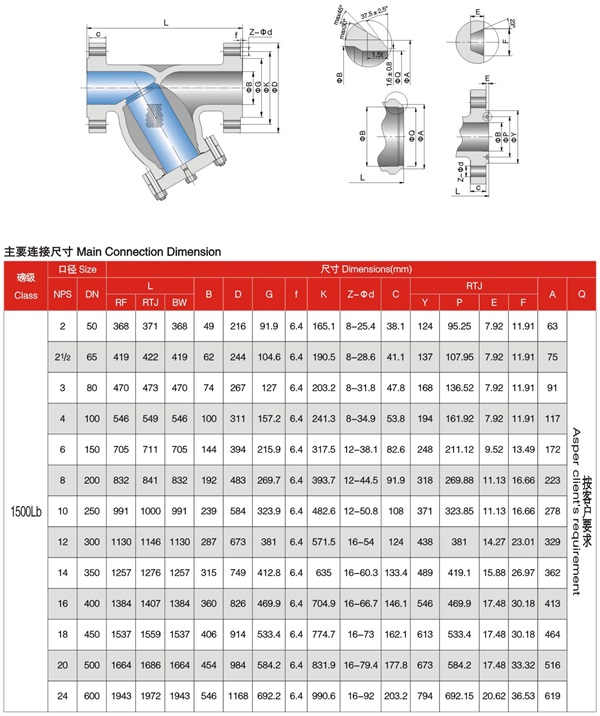

Dimensions for 1500LBS Y Type Strainer
Reference: ASME B16.5, ASME B16.10, ASME B16.20. Dimensions may vary by manufacturer. Contact us for confirmed drawing and quotation.
Y Type Strainer 1500LBS Applications
• Ultra high-pressure wellhead: onshore and offshore wellhead flow lines, choke and kill manifolds, and gas injection systems.
• Subsea production: subsea trees, manifolds, and subsea injection lines requiring RJ ring joint sealing and duplex body.
• Ultra high-pressure gas injection: gas lift and gas injection systems for enhanced oil recovery.
• Hydroprocessing and refining: ultra high-pressure hydrogen service, hydrocracker and hydrotreater protection lines.
• Sour gas and ultra high-pressure chemical: H2S-containing gas and corrosive ultra high-pressure media filtration with CF8M or A995 duplex body.
• Very high-pressure steam: supercritical boiler and ultra high-pressure turbine protection lines in power plants.
FAQ - Y Type Strainer 1500LBS
Q1: What is the pressure rating of Class 1500 Y type strainer?
A: Class 1500 Y type strainer has a design pressure of 260 bar (3,750 psi) at ambient temperature, in accordance with ASME B16.34. It is the standard choice for ultra high-pressure wellhead, subsea, and gas injection service. For lower pressure, Class 900 is more economical for onshore high-pressure process; for higher pressure, Class 2500 is available for the most extreme subsea service.
Q2: Why is RJ end connection recommended for Class 1500 Y strainers?
A: At Class 1500 ultra high-pressure rating, connection sealing reliability is critical for safety. RJ (Ring Joint) ends use a metal ring gasket compressed into a groove between the flange faces, providing a leak-tight metal-to-metal seal under extreme pressure and temperature. RJ is the industry standard for wellhead and subsea service. RF flanged ends can be used for general ultra high-pressure service with lower safety requirement, and BW ends are preferred for permanent or buried pipelines where no leak path is acceptable.
Q3: What screen material is suitable for Class 1500 DSS service?
A: For Class 1500 ultra high-pressure service, DSS (duplex stainless steel) screens are recommended. DSS 2205 is suitable for most subsea and wellhead service with excellent chloride stress corrosion resistance. DSS 2507 (super duplex) offers higher strength and corrosion resistance for sour gas (H2S-containing) and the most demanding subsea injection service. SS304 and SS316 screens are available for non-corrosive ultra high-pressure service, but are not recommended for chloride-containing media.
Q4: What body materials are recommended for Class 1500 Y strainers?
A: For general ultra high-pressure steam, oil, and gas service, WCB carbon steel is the most economical choice. For low-temperature service down to -46°C, LCB or LCC is recommended. For sour gas and corrosive ultra high-pressure media, CF8M (SS316) is preferred. For subsea wellhead, seawater injection, and offshore service, A995 duplex stainless steel (4A or 5A, including super duplex) offers the best chloride and sour resistance under ultra high pressure.
Q5: What is the maximum size available for Class 1500 Y type strainers?
A: Class 1500 Y type strainers are available from 2 inch to 24 inch (DN50 to DN600). The maximum size is limited because at ultra high pressure the wall thickness and weight increase rapidly with diameter, making large sizes uneconomical. For sizes above 24 inch, a special fabricated design may be evaluated; please contact us with your specific wellhead or subsea requirement.
Q6: How do I maintain a Class 1500 ultra high-pressure Y strainer?
A: Class 1500 Y strainer maintenance requires very strict procedure: isolate the strainer, depressurize completely, and confirm zero pressure. Remove the cover bolts (bolted cover design) following the correct loosening sequence in reverse. Take out the screen, clean or replace it. Install a new gasket (graphite or RJ ring joint) and retorque bolts to the specified torque value in a star pattern in multiple passes. The Y-shaped body allows screen removal without disconnecting the pipeline. For continuous ultra high-pressure operation, a bypass line or dual-strainer configuration is strongly recommended, and pressure test is required before returning to service.
Request a Quote for Y Type Strainer 1500LBS
Send us your size, pressure rating, material, end connection (RF / RJ / BW), mesh size, and quantity. Our team will reply within 24 hours with price, drawing, and delivery time.
Email: sales@tengsvalve.com
Website: Request a Quote Online
Email Us Now
Y Strainer Dimension Details
