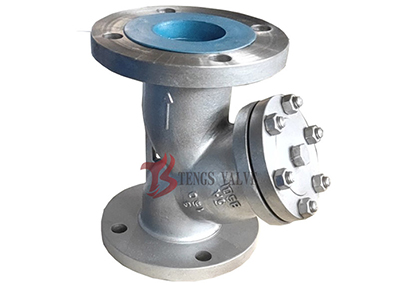

Super Duplex Stainless Steel A995-5A 4A Y Pattern Strainer - A890-5A 4A, 2 inch to 24 inch
Tengs Valve supplies high-quality Super Duplex Stainless Steel A995-5A, 4A Y Pattern Strainers (also called A890-5A, 4A Y Type Filters), designed for seawater and highly corrosive service. Body material includes duplex stainless steel A995-4A / A890-4A (2205) and super duplex stainless steel A995-5A / A890-5A (2507). Sizes range from 2 inch to 24 inch (DN50 to DN600), with pressure rating 150LB, 300LB, 600LB, 900LB and PN10, PN16, PN25, PN40, PN64. Screens are supplied in SS304, SS316, SAF2205, SAF2507, UNS S31803, UNS S32750 with perforated hole size from 1mm to 5mm. End connections include Flanged (FF, RF, RTJ) and Butt Weld (BW). Cover type is flanged with blind flange. Ideal for seawater, desalination, offshore platform, sour gas and highly corrosive chemical service.
Y Pattern Strainer Specification
• Strainer Type: Y Type, Y Pattern, Y Shaped
• Sizes: 2 inch to 24 inch (DN50 to DN600)
• Pressure Rating: 150LB, 300LB, 600LB, 900LB; PN10, PN16, PN25, PN40, PN64
• Body Material — Duplex Stainless Steel: A995-4A, A890-4A
• Body Material — Super Duplex Stainless Steel: A995-5A, A890-5A
• Strainer Screen: SS304, SS316, SAF2205, SAF2507, UNS S31803, UNS S32750 etc.
• Perforated Hole Size: 1mm, 2mm, 3mm, 4mm, 5mm etc.
• End Connection: Flanged (FF, RF, RTJ), BW (Butt Welding)
• Cover Type: Flanged with Blind Flange
• Suitable For: Seawater and highly corrosive service
✓ A995-5A / 4A super duplex Y pattern strainer provides the highest corrosion resistance for seawater and offshore service
Y Pattern Strainer Standards
1. Design and Manufacture: ASME B16.34
2. Inspection and Test: API 598
3. Flange Dimension: ASME B16.5
4. BW End Dimension: ASME B16.25
5. Face to Face: ASME B16.10
6. Pressure-Temperature Ratings: ASME B16.34
Duplex vs Super Duplex Body Material Selection: A995-4A vs A995-5A
| Property | A995-4A / A890-4A (2205) | A995-5A / A890-5A (2507) |
|---|---|---|
| UNS Number | UNS J92205 / S31803 | UNS J93404 / S32750 |
| EN Material Number | 1.4462 / 1.4470 | 1.4410 / 1.4501 |
| PREN (Pitting Resistance Equivalent Number) | ≥ 34 | ≥ 40 |
| Chloride Pitting Resistance | Good | Excellent |
| Sour Gas (H2S) Resistance | Moderate | High |
| Typical Application | Seawater, desalination, general offshore service | Seawater injection, sour gas, subsea, offshore high-chloride service |
Reference: ASTM A995, ASTM A890, NORSOK M-630, EN 10213. A995-5A (2507) offers higher PREN (≥ 40) than A995-4A (2205, PREN ≥ 34), providing superior resistance to chloride pitting and sour gas (H2S) corrosion. Both grades are cast duplex stainless steel for Y pattern strainer bodies.
Y Pattern Strainer Screen Selection
| Screen Material | Standard / UNS | Key Characteristic | Typical Application |
|---|---|---|---|
| SS304 / SS316 | ASTM A240 | General corrosion resistance | Water, non-chloride service |
| SAF2205 / UNS S31803 | ASTM A240 | High chloride resistance, PREN ≥ 34 | Seawater, desalination, general offshore service |
| SAF2507 / UNS S32750 | ASTM A240 | Highest chloride and sour resistance, PREN ≥ 40 | Seawater injection, sour gas, subsea service |
Reference: ASTM A240. For A995-5A super duplex body, SAF2507 or UNS S32750 screen is recommended to match the corrosion resistance of the body. For A995-4A duplex body, SAF2205 screen is recommended. SS304 or SS316 screen can be specified for non-chloride service.
Y Pattern Strainer Pressure Rating Comparison: ANSI vs DIN
| Standard | Pressure Rating | Design Pressure (bar) | Design Pressure (psi) |
|---|---|---|---|
| ANSI | Class 150LB | 19.6 | 285 |
| ANSI | Class 300LB | 51 | 740 |
| ANSI | Class 600LB | 102 | 1,480 |
| ANSI | Class 900LB | 153 | 2,220 |
| DIN | PN10 / PN16 | 10 / 16 | 145 / 232 |
| DIN | PN25 / PN40 | 25 / 40 | 362 / 580 |
| DIN | PN64 | 64 | 928 |
Reference: ASME B16.34, DIN EN 1092-1. A995-5A / A890-5A super duplex Y pattern strainer is available in both ANSI (150LB to 900LB) and DIN (PN10 to PN64) pressure ratings.
Super Duplex A995-5A 4A Y Pattern Strainer Applications
• Seawater intake and injection: offshore platform seawater lift pumps, seawater injection and cooling water systems requiring high chloride resistance.
• Desalination: reverse osmosis intake, brine discharge and multi-stage flash piping with A995-5A / A890-5A super duplex body.
• Offshore and subsea: offshore platform process piping, subsea manifolds and sour gas service with PREN ≥ 40 resistance.
• Sour gas and acid service: H2S-containing natural gas and acid gas filtration requiring super duplex body and SAF2507 screen.
• Chemical and petrochemical: chloride-containing corrosive media, chlorine dioxide and hypochlorite service with A995-4A or A995-5A body.
• Pulp and paper bleach plant: chlorine dioxide, hypochlorite and aggressive bleach service requiring super duplex construction.
FAQ - Super Duplex Stainless Steel A995-5A 4A Y Pattern Strainer
Q1: What is a Super Duplex A995-5A / A995-4A Y Pattern Strainer?
A: A Super Duplex A995-5A / A995-4A Y Pattern Strainer is a Y-shaped pipeline strainer with a cast duplex stainless steel body, designed for seawater and highly corrosive service. A995-5A (also called A890-5A, 2507) is super duplex stainless steel with PREN ≥ 40; A995-4A (also called A890-4A, 2205) is duplex stainless steel with PREN ≥ 34. Both grades provide excellent resistance to chloride pitting, crevice corrosion and stress corrosion cracking. The Y pattern strainer is available in sizes from 2 inch to 24 inch, pressure rating from 150LB to 900LB and PN10 to PN64.
Q2: What is the difference between A995-4A and A995-5A?
A: A995-4A (UNS J92205, 2205) is duplex stainless steel with PREN ≥ 34, offering good resistance to chloride stress corrosion cracking, suitable for seawater, desalination and general offshore service. A995-5A (UNS J93404, 2507) is super duplex stainless steel with PREN ≥ 40, providing significantly higher resistance to chloride pitting, crevice corrosion and sour gas (H2S). For seawater injection, subsea, sour gas and the most demanding offshore service, A995-5A is the recommended grade; for general seawater and desalination service, A995-4A is a more economical choice.
Q3: What is the difference between A995 and A890 standards?
A: ASTM A995 is the standard specification for cast duplex stainless steel for pressure-containing parts, covering grades 4A (2205) and 5A (2507). ASTM A890 is the previous standard specification for cast duplex stainless steel, also covering grades 4A and 5A. The two standards are essentially equivalent for duplex and super duplex grades; A995 is the more recent designation. Both A995-5A and A890-5A refer to the same super duplex 2507 material; both A995-4A and A890-4A refer to the same duplex 2205 material.
Q4: What end connections are available?
A: Four end connection types are available: (1) Flanged FF (Flat Face) to ASME B16.5. (2) Flanged RF (Raised Face) to ASME B16.5. (3) Flanged RTJ (Ring Joint) to ASME B16.5. (4) Butt Weld (BW) to ASME B16.25. Cover type is flanged with blind flange. For seawater and offshore service, RTJ or BW ends are preferred for leak-tight sealing and high-integrity connection. Face-to-face dimension follows ASME B16.10. Please specify the end connection when requesting a quotation.
Q5: What is the size range and pressure rating available?
A: Super duplex A995-5A / A995-4A Y pattern strainers are available from 2 inch to 24 inch (DN50 to DN600). Pressure ratings include ANSI Class 150LB, 300LB, 600LB and 900LB, as well as DIN PN10, PN16, PN25, PN40 and PN64. The Y pattern strainer is cast in duplex or super duplex stainless steel, with bolted cover and flanged blind flange. Perforated hole size is from 1mm to 5mm. Custom sizes and materials are available on request.
Q6: How do I maintain a Super Duplex Y Pattern Strainer?
A: Maintenance is simple: isolate the strainer, depressurize, remove the blind flange cover, take out the screen, clean or replace it, install a new gasket, and reassemble. The Y-shaped body allows screen removal without disconnecting the pipeline. For seawater and offshore service, super duplex 2507 or duplex 2205 screen is recommended to match the body material. Screen replacement is recommended when the pressure drop exceeds the initial clean-screen value by 0.5-1.0 bar. After maintenance, pressure test is recommended before returning to service.
Request a Quote for Super Duplex A995-5A 4A Y Pattern Strainer
Send us your size (2 to 24 inch or DN50 to DN600), pressure rating (150LB to 900LB or PN10 to PN64), body material (A995-5A / A995-4A / A890-5A / A890-4A), end connection (FF / RF / RTJ / BW), screen material (SS304 / SS316 / SAF2205 / SAF2507 / UNS S31803 / UNS S32750), perforated hole size, and quantity. Our team will reply within 24 hours with price, drawing, and delivery time.
