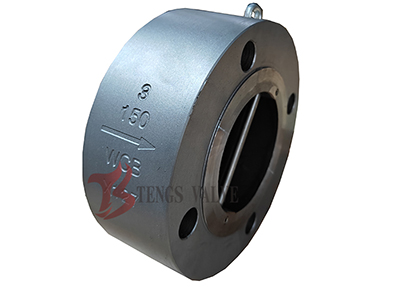

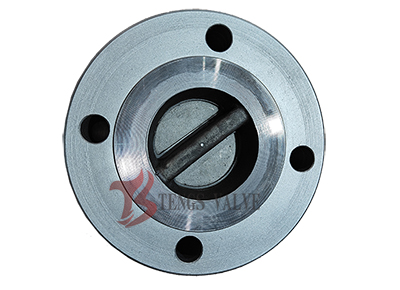

A216 WCB Lug Type Dual Plate Check Valve
1. Type Of Valve: Check Valve
2. Type Of Connection: Lug Type, Flange Type
3. Type Of Disc: Dual Plate, Double Disc
4. Size Range: 2" to 24", Dn50 - Dn600
5. Working Pressure: Ansi 150LB, 300LB, 600LB, 900LB
6. Type Of Body Material: Cast Steel, Carbon Steel, A216-WCB
7. Type Of Trim Material: Stainless Steel SS316, SS304, A351-CF8M, A351-CF8, DSS
8. Type Of Spring Material: Stainless Steel SS316, Inconel X-750
9. Design & Manufacture: API594, API6D
10. Face to Face: API564, API6D
11. Inspection & Test: API598
12. Other Materials And Pressure On Request
Main Dimensions Of Dual Plate Lugged Check Valves:
Ansi Class 150LB (Face to Face Dimensions):
| Size | 2" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
| L(mm) | 60 | 73 | 73 | 86 | 98 | 127 | 146 | 181 | 222 | 232 | 264 | 292 | 222 |
Ansi Class 300LB (Face to Face Dimensions):
| Size | 2" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
| L(mm) | 60 | 73 | 73 | 86 | 98 | 127 | 146 | 181 | 222 | 232 | 264 | 292 | 318 |
