Basket Strainer 150LBS Cast Steel Body - ANSI Class 150, 2 inch to 24 inch, Flanged RF BW
Tengs Valve is a China Cast Steel Basket Strainer and Bucket Strainer supplier, offering Simplex Basket Strainers in ANSI Class 150LBS with cast steel body construction. Sizes range from 2 inch to 24 inch (DN50 to DN600), with bolted cover design and available with flanged RF or Butt Weld (BW) ends to ASME B16.5 / B16.25. Body materials include cast carbon steel (WCB, LCB, LCC), stainless steel (CF8, CF8M, CF3, CF3M), duplex stainless steel and super duplex stainless steel. Screens are supplied in 304SS and 316SS with mesh sizes from 20 to 400 mesh. The large cylindrical basket provides high dirt holding capacity and large filtration area, protecting pumps, instruments and heat exchangers in water, gas, oil and steam service.
Specifications For Basket Strainer 150LBS
• Strainer Type: Simplex Basket Strainer, Bucket Strainer
• Body Structure: Cast Steel Body
• Sizes: 2 inch to 24 inch (DN50 to DN600)
• Pressure Rating: ANSI 150LBS / Class 150
• Suitable Medium: Water, gas, oil, steam etc.
• Body Material: WCB, LCB, LCC, CF8, CF8M, CF3, CF3M, Duplex Stainless Steel, Super DSS etc.
• Screen: Stainless Steel (304SS, 316SS)
• Mesh Size: 20, 40, 60, 80, 100, 200, 400 mesh etc.
• End Connection: Butt Weld (BW), Flanged RF (Raised Face)
• Cover Type: Bolted Cover (B.C.)
• Design and Manufacture: ASME B16.34
• Inspection and Test: API 598
• Flange Dimension: ASME B16.5
• BW End Dimension: ASME B16.25
• Face to Face: ASME B16.10
✓ Cast steel body Class 150 basket strainer provides reliable filtration with high dirt holding capacity for general industrial pipeline protection
Basket Strainer Pressure Rating Comparison: Class 150 vs 300 vs 600
| Pressure Class | Design Pressure (bar) | Design Pressure (psi) | Typical Application |
|---|---|---|---|
| ANSI Class 150 | 19.6 | 285 | Water distribution, HVAC, general industrial piping, low-pressure service |
| ANSI Class 300 | 51 | 740 | General hydrocarbon, process piping, medium-pressure service |
| ANSI Class 600 | 102 | 1,480 | High-pressure process, refinery, power plant |
Reference: ASME B16.34. Class 150 is the most economical pressure class for general water, HVAC and industrial service. Class 300 and 600 are available for higher pressure requirements.
Class 150 Cast Steel Basket Strainer Common Material Selection
| Body Material | Standard | Key Characteristic | Typical Application |
|---|---|---|---|
| A216-WCB | ASTM A216 | Cast carbon steel, cost-effective | Water, steam, oil, non-corrosive service |
| A352-LCB / LCC | ASTM A352 | Low-temperature carbon steel | Cold climate and low-temperature service down to -46°C |
| A351-CF8 (SS304) | ASTM A351 | General corrosion resistance | Water treatment, food and beverage, general chemical |
| A351-CF8M (SS316) | ASTM A351 | Mo-bearing, chloride resistance | Chemical, marine, offshore, chloride-containing media |
| A351-CF3 / CF3M | ASTM A351 | Low-carbon, weld-friendly | Welded construction, corrosive service |
| A890/A995 4A / 5A | ASTM A890 / A995 | Duplex and super duplex stainless steel | Seawater, desalination, offshore, sour service |
Reference: ASTM A216, A352, A351, A890. WCB is standard for general Class 150 basket strainer service; CF8M and duplex stainless are selected for corrosive and offshore service; LCB and LCC are used for low-temperature service down to -46°C.
Cast Body vs Fabricated Body Basket Strainer (150LBS)
| Item | Cast Body (This Page) | Fabricated Body |
|---|---|---|
| Body Construction | One-piece sand casting | Welded steel plate, multi-piece |
| Size Range | 2 inch to 24 inch (DN50 to DN600) | 8 inch to 36 inch (DN200 to DN900) |
| Wall Thickness | Uniform, thicker walls | Customizable, lighter weight in large sizes |
| Lead Time | Standard patterns, stable lead time | Shorter for large sizes and custom dimensions |
| Typical Application | General industrial service, water, oil, gas, chemical | Large diameter pipeline, district heating main lines, custom projects |
Reference: ASME B16.34, API 598. This page covers the cast body version of Class 150 basket strainer. For fabricated body version, please refer to Basket Strainer 150LBS (Fabricated Body).
Basket Strainer 150LBS Cast Body Main Parts and Material List
| No. | Part Name | Carbon Steel | Stainless Steel | Duplex / Super Duplex |
|---|---|---|---|---|
| 01 | Body | A216-WCB, A352-LCB, A352-LCC | A351-CF8, CF8M, CF3, CF3M | A890-4A, A890-5A / A995-5A |
| 02 | Basket / Screen | 304SS, 316SS | 304SS, 316SS | Duplex 2205, Super Duplex 2507 |
| 03 | Wire Mesh | 304SS, 316SS | 304SS, 316SS | Duplex 2205, Super Duplex 2507 |
| 04 | Gasket | Graphite, Graphite + Stainless Steel (304SS / 316SS), PTFE | ||
| 05 | Cover | A105, A216-WCB | A182-F304, F304L, F316, F316L | A182-F51, A182-F53 |
| 06 | Bolt | A193 B7 | A193 B8, A193 B8M | A193 B8M |
| 07 | Nut | A194 2H | A194 8, A194 8M | A194 8M |
| 08 | Drain Plug | A105, A193 B7 | A182-F304, F316, A193 B8, B8M | A182-F51, F53, A193 B8M |
Reference: ASME B16.34, API 598, ASTM A216, A352, A351, A890. Materials may vary by model and pressure rating. Contact us for confirmed material certificate to EN 10204 3.1.

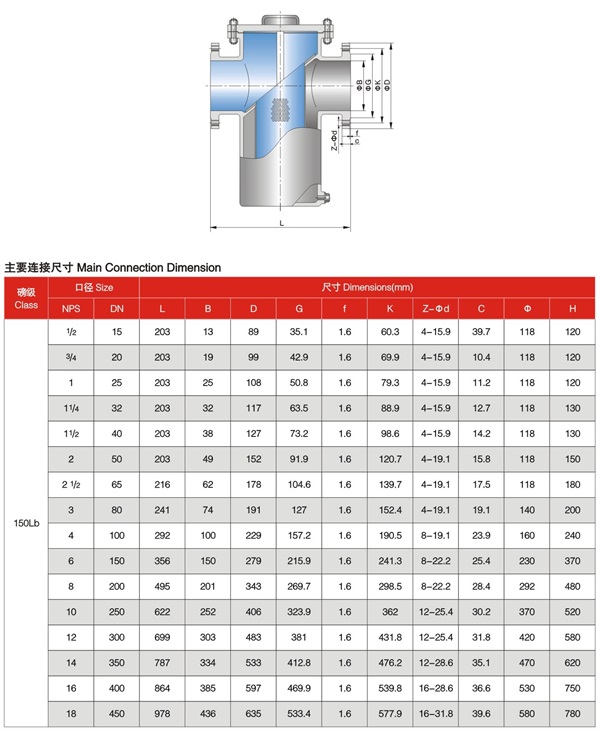

Dimensions for 150LBS Cast Steel Basket Strainer
Reference: ASME B16.5, ASME B16.10. Dimensions may vary by manufacturer. Contact us for confirmed drawing and quotation.
Basket Strainer 150LBS Cast Steel Body Applications
• Water treatment and distribution: municipal water networks, pump suction and discharge protection with large filtration area cast body basket.
• HVAC and building services: chilled water, hot water and low-pressure steam distribution in commercial and industrial buildings.
• General industrial service: low-pressure oil, gas, and steam pipelines requiring reliable basket strainer filtration with WCB cast body.
• Chemical processing: reagent feed lines and corrosive media filtration with CF8 / CF8M cast stainless steel body.
• Power plant and boiler service: feedwater, condensate and cooling water protection lines with ANSI Class 150 rating.
• Marine and offshore: seawater cooling and offshore platform utility lines with A890-4A / 5A duplex cast body and 2205 / 2507 basket.
FAQ - Basket Strainer 150LBS Cast Steel Body
Q1: What is a Cast Steel Basket Strainer 150LBS?
A: A Cast Steel Basket Strainer 150LBS is a basket type pipeline filter with a one-piece sand-cast steel body rated to ANSI Class 150 (19.6 bar / 285 psi at ambient temperature). It removes small impurities from liquid, gases and pipe systems using a perforated screen or wire mesh basket. The large cylindrical basket provides high dirt holding capacity and a large filtration area. It is the standard choice for general industrial service, water, oil, gas and steam piping where the pressure rating is Class 150 or lower.
Q2: What is the size range and end connection available?
A: Cast steel basket strainers 150LBS are available from 2 inch to 24 inch (DN50 to DN600). End connections include Flanged RF (Raised Face) to ASME B16.5, and Butt Weld (BW) to ASME B16.25. Face-to-face dimension follows ASME B16.10. Cover type is bolted cover (B.C.) as standard. For sizes above 24 inch, a fabricated body design is available; please refer to the fabricated body page.
Q3: What body materials are available for the cast steel basket strainer?
A: Body materials include cast carbon steel (A216-WCB), low-temperature carbon steel (A352-LCB, A352-LCC) for service down to -46°C, cast stainless steel (A351-CF8, CF8M, CF3, CF3M), duplex stainless steel (A890-4A) and super duplex stainless steel (A890-5A / A995-5A). WCB is the standard and most economical choice for general water, oil and steam service; CF8M and duplex are selected for corrosive, seawater and offshore service.
Q4: What is the difference between Cast Body and Fabricated Body basket strainer?
A: Cast body basket strainer has a one-piece sand-cast body, typically available from 2 inch to 24 inch (DN50 to DN600). It has uniform thicker walls and is the standard choice for general industrial service. Fabricated body basket strainer is made from welded steel plates, typically available from 8 inch to 36 inch (DN200 to DN900). It offers shorter lead time for large sizes and custom dimensions, and lighter weight in large sizes. For sizes above 24 inch or special project requirements, fabricated type is preferred. Both types are available in Class 150 and Class 300 ratings.
Q5: What screen and mesh sizes are available?
A: Screens are supplied in stainless steel 304SS and 316SS as standard. For corrosive and seawater service, duplex 2205 and super duplex 2507 baskets are available. Mesh sizes include 20, 40, 60, 80, 100, 200 and 400 mesh, tailor-made to customer requirements. For general water and HVAC service, 20 to 40 mesh is common; for fine chemical and pump protection, 80 to 200 mesh is specified. Please specify the mesh size when requesting a quotation.
Q6: How do I maintain a cast steel basket strainer 150LBS?
A: Maintenance is simple: isolate the strainer, depressurize, remove the cover bolts (bolted cover design), take out the basket, clean or replace the screen and mesh, install a new gasket, and reassemble. The bolted cover design allows basket removal without disconnecting the pipeline. Screen replacement is recommended when the pressure drop exceeds the initial clean-screen value by 0.5-1.0 bar. For continuous operation without pipeline shutdown, a duplex basket strainer configuration is recommended.
Request a Quote for Basket Strainer 150LBS Cast Steel Body
Send us your size, pressure rating (Class 150LBS), body material (WCB / LCB / LCC / CF8 / CF8M / CF3 / CF3M / Duplex / Super Duplex), end connection (RF / BW), screen material (304SS / 316SS / 2205 / 2507), mesh size, and quantity. Our team will reply within 24 hours with price, drawing, and delivery time.
