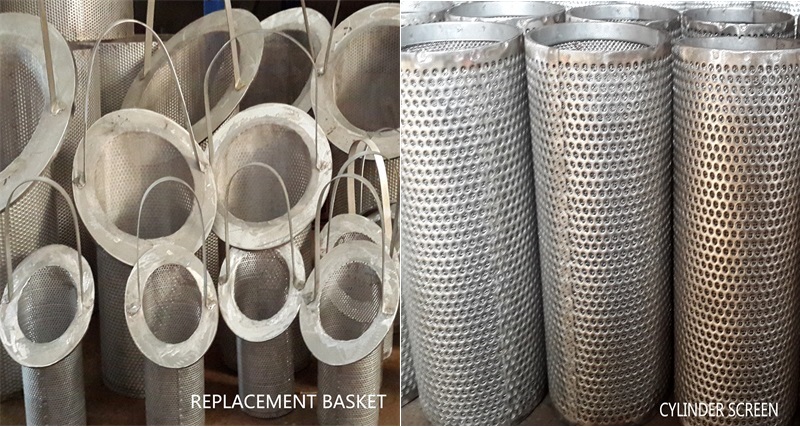

Replacement Baskets and Cylinder Screens - Y Type Strainer and Basket Strainer, 2 inch to 36 inch
Tengs Valve manufactures and supplies a wide range of Strainer Baskets and Screens for Y Type Strainers and Basket Strainers. Available in stainless steel (304SS, 316SS, 304LSS, 316LSS) and duplex stainless steel (SAF 2205, SAF 2507, UNS S31803, UNS S32750). Sizes range from 2 inch to 36 inch (DN50 to DN900). Cylinder screens for Y type strainers are rated to ANSI 150Lbs to 1500Lbs and PN6 to PN100; basket screens for basket strainers are rated to ANSI 150Lbs to 600Lbs and PN6 to PN64. Various perforated hole sizes and mesh sizes are available. When inquiry, please provide the dimensions for quotation and specify the perforated hole size and mesh size.
Specifications For Replacement Baskets and Cylinder Screens
• Product Type: Replacement Baskets, Cylinder Screens
• Sizes: 2 inch to 36 inch (DN50 to DN900)
• Materials: Stainless Steel (304SS, 316SS, 304LSS, 316LSS), Duplex Stainless Steel (SAF 2205, SAF 2507, UNS S31803, UNS S32750)
• Cylinder Screen for Y Type Strainer: ANSI 150Lbs to 1500Lbs, PN6 to PN100
• Basket Screen for Basket Strainer: ANSI 150Lbs to 600Lbs, PN6 to PN64
• Perforated Hole Size: Various sizes available
• Mesh Size: Various sizes available
• Custom Made: Yes, please provide dimensions for quotation
✓ Replacement baskets and cylinder screens are precision-manufactured to match original strainer dimensions for reliable filtration performance
Cylinder Screen vs Basket Screen Comparison
| Item | Cylinder Screen | Basket Screen |
|---|---|---|
| Application | Y Type Strainer, Y Type Filter | Basket Strainer, Basket Filter |
| Size Range | 2 inch to 36 inch (DN50 to DN900) | 2 inch to 36 inch (DN50 to DN900) |
| Pressure Rating | ANSI 150Lbs to 1500Lbs, PN6 to PN100 | ANSI 150Lbs to 600Lbs, PN6 to PN64 |
| Materials | SS304, SS316, SS304L, SS316L, Duplex 2205, Super Duplex 2507 | SS304, SS316, SS304L, SS316L, Duplex 2205, Super Duplex 2507 |
| Perforated Hole | Various sizes available | Various sizes available |
| Mesh Size | Various sizes available | Various sizes available |
Reference: Cylinder screens are designed for Y type strainers with higher pressure ratings up to 1500Lbs / PN100; basket screens are designed for basket strainers with pressure ratings up to 600Lbs / PN64.
Material Selection For Replacement Baskets and Cylinder Screens
| Material | Standard | Key Characteristic | Typical Application |
|---|---|---|---|
| SS304 / SS304L | ASTM A240 | General corrosion resistance, most economical | Water treatment, food and beverage, HVAC |
| SS316 / SS316L | ASTM A240 | Mo-bearing, chloride resistance | Chemical, marine, pharmaceutical |
| Duplex 2205 (SAF 2205) | UNS S31803 / S32205 | High chloride resistance, PREN ≥ 34 | Seawater, desalination, offshore service |
| Super Duplex 2507 (SAF 2507) | UNS S32750 | Highest chloride and sour resistance, PREN ≥ 40 | Seawater injection, sour gas, subsea |
Reference: ASTM A240, ASTM A276. All replacement baskets and cylinder screens are manufactured from stainless steel or duplex stainless steel. SS304/304L is the standard and most economical choice; SS316/316L is selected for chloride-containing media; duplex 2205 and super duplex 2507 are used for seawater, desalination and offshore service. Contact us for confirmed material certificate to EN 10204 3.1.
Perforated Hole and Mesh Size Selection
• Perforated Hole Size: Various sizes are available to suit different filtration requirements. Common perforated hole sizes include 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm and 10mm. The perforated plate provides high mechanical strength and is suitable for coarse filtration and high dirt load service.
• Wire Mesh Size: Wire mesh is available in a wide range of mesh sizes, including 10, 20, 40, 60, 80, 100, 200 and 400 mesh. Wire mesh provides finer filtration for pump and instrument protection.
• Combined Screen: Perforated plate and wire mesh can be combined for high dirt load with fine filtration requirement, commonly specified for refinery, power plant and offshore main lines.
• Custom Sizes: When inquiry, please provide the dimensions for quotation and specify the perforated hole size and mesh size.

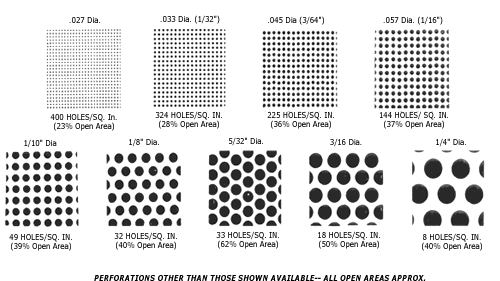

Screen Mesh Detail
Replacement Baskets and Cylinder Screens Applications
• Y Type Strainer maintenance: replacement cylinder screens for Y type strainers used in water, steam, oil and gas pipelines.
• Basket Strainer maintenance: replacement baskets for Simplex and Duplex basket strainers in water treatment, chemical and industrial service.
• Water treatment: municipal water networks, pump suction and discharge protection with SS304 or SS316 replacement screens.
• Chemical and petrochemical: corrosive media filtration with SS316L, duplex 2205 or super duplex 2507 screens.
• Power plant: feedwater, condensate and cooling water protection with high-pressure cylinder screens up to 1500Lbs.
• Offshore and marine: seawater and offshore service with duplex 2205 and super duplex 2507 screens for high-chloride resistance.
FAQ - Replacement Baskets and Cylinder Screens
Q1: What are Replacement Baskets and Cylinder Screens?
A: Replacement Baskets and Cylinder Screens are the filter elements used in Y type strainers and basket strainers. They are the wear parts that capture debris and impurities from the pipeline. Over time, the screens may become clogged, damaged or corroded, and need to be replaced to maintain filtration performance. Tengs Valve manufactures replacement baskets and cylinder screens to match original strainer dimensions, available in stainless steel and duplex stainless steel.
Q2: What is the difference between Cylinder Screen and Basket Screen?
A: Cylinder Screen is designed for Y type strainers (Y type filters). It is a cylindrical screen element inserted into the Y-shaped strainer body. Cylinder screens are available for pressure ratings from ANSI 150Lbs to 1500Lbs and PN6 to PN100. Basket Screen is designed for basket strainers (basket filters). It is a basket-shaped screen element placed in the basket chamber of the strainer. Basket screens are available for pressure ratings from ANSI 150Lbs to 600Lbs and PN6 to PN64. Both types are available from 2 inch to 36 inch (DN50 to DN900).
Q3: What materials are available for Replacement Baskets and Cylinder Screens?
A: Replacement baskets and cylinder screens are available in stainless steel (304SS, 316SS, 304LSS, 316LSS) and duplex stainless steel (SAF 2205, SAF 2507, UNS S31803, UNS S32750). SS304 and SS304L are the standard and most economical choices for general water and industrial service; SS316 and SS316L are selected for chloride-containing and corrosive media; duplex 2205 is used for seawater and general offshore service; super duplex 2507 is used for seawater injection, sour gas and subsea service where the highest chloride resistance is required.
Q4: What perforated hole sizes and mesh sizes are available?
A: Various perforated hole sizes and mesh sizes are available to suit different filtration requirements. Common perforated hole sizes include 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm and 10mm. Wire mesh sizes include 10, 20, 40, 60, 80, 100, 200 and 400 mesh. Perforated plate provides high mechanical strength and is suitable for coarse filtration; wire mesh provides finer filtration. Combined screens (perforated plate + wire mesh) are available for high dirt load with fine filtration requirement. When inquiry, please specify the perforated hole size and mesh size.
Q5: How do I order Replacement Baskets and Cylinder Screens?
A: To order replacement baskets and cylinder screens, please provide the following information: (1) Strainer type — Y type strainer or basket strainer. (2) Size — 2 inch to 36 inch (DN50 to DN900). (3) Pressure rating — for cylinder screen: ANSI 150Lbs to 1500Lbs or PN6 to PN100; for basket screen: ANSI 150Lbs to 600Lbs or PN6 to PN64. (4) Material — SS304, SS316, SS304L, SS316L, duplex 2205 or super duplex 2507. (5) Dimensions — please provide the dimensions for quotation. (6) Perforated hole size and mesh size. Please send us the above details and we will reply within 24 hours with price and delivery time.
Q6: How often should I replace the strainer screen?
A: The replacement frequency depends on the contamination level of the medium and the pressure drop across the strainer. Screen replacement is recommended when the pressure drop exceeds the initial clean-screen value by 0.5-1.0 bar. For high dirt load service, more frequent cleaning and replacement may be necessary. For critical continuous processes, keeping a spare screen in stock is recommended to minimize downtime. The strainer body itself can be reused; only the screen element needs to be replaced.
Request a Quote for Replacement Baskets and Cylinder Screens
Send us your strainer type (Y type or basket type), size (2 to 36 inch or DN50 to DN900), pressure rating (ANSI 150Lbs to 1500Lbs or PN6 to PN100), material (SS304 / SS316 / SS304L / SS316L / Duplex 2205 / Super Duplex 2507), dimensions, perforated hole size, mesh size, and quantity. Our team will reply within 24 hours with price and delivery time.
